LATEST TECHNOLOGY

We know laser technology creates better results. And so do you.

REAL USABILITY

Let the device assist you. By integrated settings & smart design.

LOW NOISE & EFFICIENT

Adaptive air-cooling with almost no operating noise.

We set the New Standard

 Laser technology has been used in medicine for decades. Yet, technology and treatment approaches have remained largely the same.

We know we can do better and improve both technology and the way it is used.

By teaming up with experts from all medical fields, we learn to understand current challenges and how they can be solved best.

We are dedicated to offer affordable, high quality laser products with the perfect balance.





OUR PRODUCTS

OUR PRODUCTS - ACCESSORIES

Micromanipulators for Microscopes and Colposcopes

High-precision micromanipulators are an essential accessory for fine-surgical laser treatment of tissue. Our accessories integrate optimally into your laser work station and provide a precise link between the laser device and your microscope or colposcope.

Main FeaturesMicroSpot X2 with remote joystick

  • Mounts easily to existing microscopes or colposcopes of all major brands
  • Comfortable movement of the laser beam by a joystick
  • Quick defocussing of the laser beam for increased coagulation by a special defocussing lever (model MicroSpot)
  • Adjustable hand holder that can be positioned according to the surgeon's preferences
  • Ultra-small spot sizes guarantee an optimal cutting behavior
  • Can be combined with Scanner System SurgiScan for enabling high-precision tissue ablation







Available Configurations

  • Micromanipulator MiniSpot
    High-precision micromanipulator with spot sizes >=0,320 mm for general microscopic and colposcopic applications.
  • Micromanipulator MicroSpot X2
    High-precision micromanipulator with spot sizes >=0,1 mm for minimal effects on surrounding tissue structures. Highly recommended for ENT.





Medical Applications


Please click on the individual disciplines to see the type of treatments our laser devices can be used for.

Main Accessories

  • Scanner System SurgiScan
  • Connectors for both articulated arms and flexible fibers
  • Various adapters for all known microscope / colposcope manufacturers





Technical Specifications


  • Extended focal width range 200 - 600 mm
  • Adjustable hand holder
  • Enabled for combined use with Scanner SurgiScan
  • Maximum energy transmission rates by special lense / mirror technology
  • Design optimized for high-precision treatments and comfortable mounting on the existing microscope / colposcope

* depending on device model & configuration

Technical changes reserved.

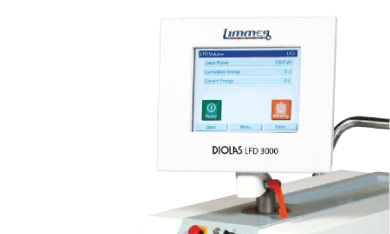

High Power Laser DIOLAS LFD 3000

DIOLAS LFD 3000 is a powerful laser system equipped with the unique LFD (Levelled Field Density) Mode which effectively reduces collateral damages on soft tissue to only 1 mm, compared to 9 - 11 mm with standard coagulation lasers.

Medical studies have shown that this controlled coagulation significantly reduces post-operative complications such as swelling, inflammation or organ dysfunction.

This powerful laser device is the perfect interdisciplinary tool for surgeons in most medical fields that require high cutting or ablative precision at tissue without sacrificing a good and constant coagulation.



Main Features

  • World's first high-power laser with LFD (Levelled Field Density) Mode which limits coagulation to 1 mm for clearly reduced collateral damage
  • Large 10,4 " True Color Touch Panel for easy and intuitive use
  • Low noise level and highly mobile by large castor wheels
  • Eye-safe laser light, no need for extra camera filters
  • Strongly recommended for interdisciplinary use with an extended range of accessories





Medical Applications



diolas lfd 3000 03

Brochure DIOLAS LFD 3000

Please click on the video's fullscreen button to enlarge.



Main Accessories




Available Configurations

  • DIOLAS LFD 3000
    Enabled for both soft tissue treatment and stone destruction
  • DIOLAS LFD 3000 T
    Enabled for soft tissue treatment


Technical Specifications

Laser type Semiconductor-based Laser module with LFD mode
Operating modes & power at tissue
  • LFD Mode
  • Continuous Wave
  • Pulsed Mode (milliseconds or microseconds range)
  • Lithotripsy Mode *

Output power freely adjustable between 1 - 100 Watt
Activation profiles
  • Continuous
  • Pulse repetition
User interaction
  • True Color Touch Panel 10,4 Inches (26,4 cm) with brilliant colors
  • Adjustable audio output on emission and ready / standby
  • USB Port for output of treatment protocols
  • Output power can be controlled by footswitch in 5 Watt steps
  • Integrated treatment protocol with USB export and individual patient ID
Beam delivery Various types of flexible fiber probes
Pilot beam red (635 nm), < 3 mW, adjustable
Integrated ports
  • USB port
  • Control of external smoke evacuator VACULAS
  • Warning lamp system
Memory for user programs Storage for up to 9 individual operating parameters
Cooling Internal
Electrical
requirements		 230 V (10 A) / 110 V (16 A), 50 / 60 Hz, single-phase
Dimensions & weight 50 x 100 x 95 cm (W x H x D), 102 kg

* depending on device model & configuration

Technical changes reserved.



 lfd mode english

Diode Laser DIOLAS Photon

DIOLAS Photon is the new leader of high-quality compact lasers. With its unique abilities and specialized accessories, it becomes the perfect tool for medical doctors in many fields.

The instrument which adapts to your needs

  • Store your own user name and own set of treatment parameters
  • Easily choose treatment parameters on-screen from the list of indications of your own medical discipline
  • Configure the laser system with accessories such as handpiece holders, etc. according to your preferences

Main Features

  • World's first compact laser with LFD (Levelled Field Density) Mode which limits coagulation to a constant 1 mm for clearly reduced collateral damage
  • Large 10,4 " True Color Touch Panel for easy and intuitive use
  • Compact, lightweight and easy to carry
  • Multi-user system for infinite storage of individual user programs
  • Interactive assistant program for easy selection of treatment parameters

intro DIOLASPhoton

Brochure DIOLAS Photon
Show brochure

Treatment Pictures & Videos

Please click on the video's fullscreen button to enlarge.

 Medical Applications

Please click on the individual disciplines to see the type of treatments this laser device can be used for.



Available Configurations

DIOLAS Photon Pro
High-power advanced model

  • 30 Watt @ 980 nm, alternatively 810 nm
  • 50 Watt @ 980 nm, alternatively 810 nm
  • 30 Watt @ LFD Mode
  • 50 Watt @ LFD Mode



DIOLAS Photon Duo
Powerful dual-mode model

  • 30 Watt @ CW 980 nm + 25 Watt @ LFD Mode
  • 30 Watt @ CW 810 nm + 25 Watt @ LFD Mode

Main Accessories



Technical Specifications

Laser type Semiconductor-based Laser module at different available wavelengths *
Operating modes & power at tissue *
  • LFD Mode *
  • Continuous Wave
  • Pulsed Mode

Output power between 0,5 Watt and device maximum, depending on individual configuration
Activation profiles
  • Continuous
  • Single pulse (10 ms - 5 s)
  • Pulse repetition (10 ms - 5 s)
User interaction
  • True Color Touch Panel 10,4 Inches (26,4 cm) with brilliant colors
  • Interactive assistent program for the smart choice of operating parameters
  • Adjustable audio output per energy pulse or continuous
  • USB Port for output of treatment protocols
Beam delivery Various types of flexible fiber probes
Pilot beam

red (635 nm), < 3 mW, adjustable
Integrated ports
  • USB port
  • Control of external smoke evacuator VACULAS
  • Warning lamp system
  • Ethernet port (optional)
  • Scanner system port (optional)
Memory for user programs Storage for >50.000 user profiles and individual operating parameters
Cooling Internal
Electrical
requirements *		 230 - 240 V (10 A) / 100 - 110 V (15 A), 50 / 60 Hz, single-phase
Dimensions & weight * 35 x 31 x 42 cm (W x H x D), max. 15 kg

* depending on device model & configuration

Technical changes reserved.
  Supported by Federal Ministry of Economics and Technology

Diode Laser DIOLAS Newton

Diode Laser DIOLAS Newton

Diode Laser DIOLAS Newton



DIOLAS NewtonHigh power in small format

  • Intuitive use by large 9.7" True Color Touch Panel
  • Up to 100 W of output power as compact tabletop device
  • Storage for own treatment parameters
  • Integrated treatment assistants


We configure your device tailored to your needs.
With the output power you need and up to two laser wavelengths.



Genuine Made in Germany

We manufacture in Germany, and we also source our components from here.

For quality you can rely on, at an outstanding price-value ratio.
Request quotation

CO2 Laser UNILAS Touch

Our new 4th generation CO2 Laser combines all advantages of latest laser technology with the extensive experience of our engineers on how to build the ideal laser for clinics and hospitals. See yourself how good is the new CO2 Laser UNILAS Touch!







Main advantages

  • High output powers
    of up to 60 Watt Continuous Wave (CW) and 30 Watt extended SuperPulse
  • Innovative UltraSharp Laser Technology
    for the smallest beam diameters available & improved patient outcome
  • Newly developed scanner system SurgiScan X2
    for precise ablation and cutting of tissue as well as gentle fractional therapy - ideal for aesthetic and surgical treatments
  • New SolidBench Technology
    for a lasting and perfect alignment of pilot and working beam
  • Large True Color Touch Panel
    for easy and intuitive use of all functions
  • Integrated treatment assistant
    to assist in the choice of the right treatment parameters - benefit from the experience of surgeons of all medical discipline    s





The instrument which adapts to your needs

  • Store your own user name and own set of treatment parameters
  • Easily choose treatment parameters on-screen from the list of indications of your own medical discipline
  • Interdisciplinary laser system, ideal for teaching and clinical research
  • Configure the laser system with accessories  - or have it integrate with most of your existing tools




Open brochure



Exemplary views of the user interface



Medical Applications


Please click on the individual disciplines to see the type of treatments this laser device can be used for.





Available Configurations

  • UNILAS Touch One (30 W)
    Cost-effective entry-level model
  • UNILAS Touch One (40 W)
    Cost-effective entry-level model
  • UNILAS Touch Pro (60 W)
    High-power advanced model
  • UNILAS Touch Pro (80 W)
    High-power advanced model





Main Accessories





Technical Specifications

LASER TYPE

CO2 Laser with TEMoo Mode
λ 10.600 nm
OPERATING MODES & POWER AT TISSUE
  • Continuous Wave (CW)
  • Enhanced SuperPulse
  • Ultra-short Pulser Mode

Output power freely adjustable between 0,4 and 30 / 60 Watt, depending on device model and operating mode.
ACTIVATION PROFILES
  • Continuous
  • Single pulse (1 ms - 5 s)
  • Pulse repetition (1 ms - 5 s)
USER INTERACTION
  • True Color Touch Panel 10,4 Inches (26,4 cm) with brilliant colors
  • Interactive assistant program for the smart choice of operating parameters
  • Adjustable audio output per energy pulse or continuous
  • USB port for output of treatment protocols
BEAM DELIVERY Free-moving articulated arm with 7 joints for an extensive treatment range of 150 cm, 360° rotatable. Optional: Flexible laser fiber
PILOT BEAM

red, bright and precise, adjustable and ideal for modern microscopes and colposcopes
INTEGRATED PORTS
  • USB port
  • Control of external smoke evacuator VACULAS
  • Warning lamp system
  • Ethernet port (optional)
  • Scanner system port (optional)
MEMORY FOR USER PROGRAMS Storage for >50.000 user profiles and individual operating parameters
COOLING Internal
ELECTRICAL REQUIREMENTS 230 - 240 V (6 A) / 100 - 110 V (10 A), 50 / 60 Hz, single-phase
DIMENSIONS & WEIGHT Depending on the configuration

TECHNICAL CHANGES RESERVED





Our Quality - Your advantage

Find out more about our laser devices "Made in Germany".
Ask for an offer
