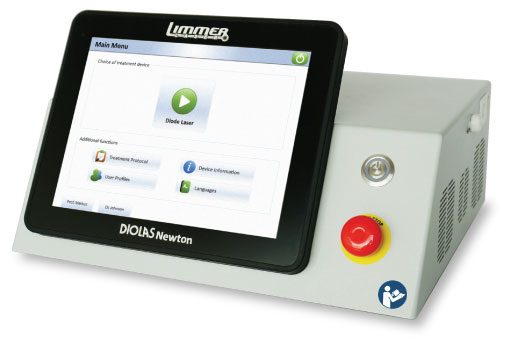

Diode Laser DIOLAS Newton



DIOLAS NewtonHigh power in small format

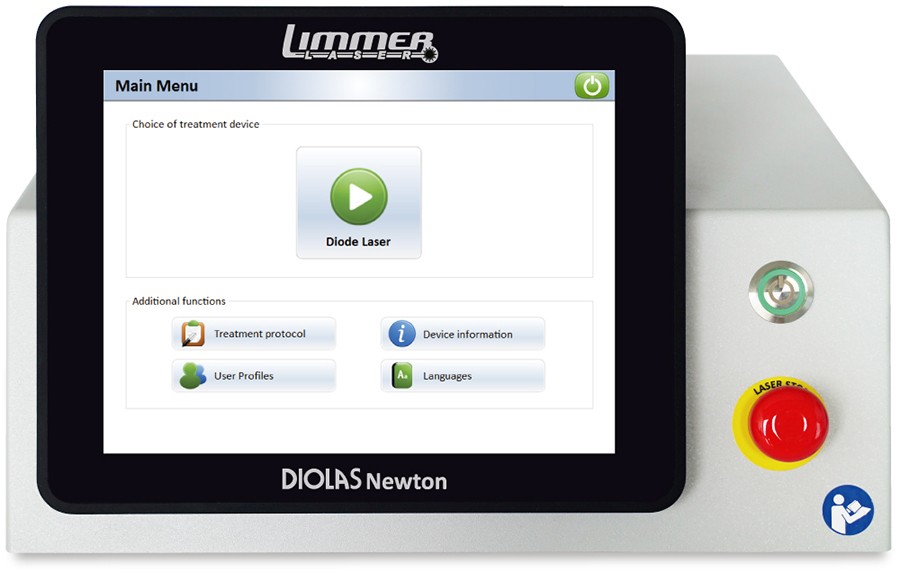

  • Intuitive use by large 9.7" True Color Touch Panel
  • Up to 50 W of output power as compact tabletop device
  • Storage for own treatment parameters
  • Integrated treatment assistants


We configure your device tailored to your needs.
With the output power you need and up to two laser wavelengths.



Genuine Made in Germany

We manufacture in Germany, and we also source our components from here.

For quality you can rely on, at an outstanding price-value ratio.
Request quotation

Medical applications

  • ENT (Ear-Nose-Throat)
  • Dermatology & Vascular surgery
  • Proctology
  • Oral and Maxillofacial surgery
  • Dental surgery
  • General surgery
  • Gynecology
  • Spinal surgery
  • Urology
  • Thorax surgery and pneumology
Typical ENT applications are:
  • Tonsillectomy and tonsillotomy
  • Epistaxis (nose bleeding)
  • LAUP (Laser-assisted uvulopalatoplasty)
  • Septum deviation
  • Nasal concha hyperplasia
  • Nasal polyps
  • Paranasal sinus surgery

The energy is applied by Bare Fibers with frontal energy emission, in combination with guiding handpieces.

Typical dermatology und vascular surgery applications are:
  • Haemangioma
  • Condylomata
  • Spider naevi
  • Varices (varicose veins)
  • Telangiectasia

The laser energy can be applied by various flexible fibers and handpieces, which either focus or spread the energy onto tissue.

The endovascular treatment of varicose veins takes advantage of the special EndoRadial Fiber which distributes laser energy in a 360° angle. The homogeneous energy spread ensures a gentle closure of the vein.

Typical proctology applications are:
  • Haemorrhoids
  • Anal fistula
  • Pilonidal cysts
  • Condylomata

The energy is applied by Bare Fibers with frontal energy emission, in combination with guiding handpieces. The treatment of haemorrhoids and anal fistula takes advantage of the special EndoRadial Fiber with 360° energy emission, to gently seal the vein from the inside.

Typical oral and maxillofacial applications are:
  • Dissection of lip frenulum
  • Gentle removal of tumors
  • Disinfection of gum pockets

The energy is applied by Bare Fibers with frontal energy emission, in combination with guiding handpieces.

Typical dental applications are:
  • Implantology
  • Parodontology
  • Endodonty
  • Bleaching

The energy is applied by Bare Fibers with frontal energy emission, in combination with guiding handpieces.

For general surgery, the device can be used to cut or coagulate tissue.

The energy is applied by Bare Fibers with frontal energy emission, in combination with guiding handpieces.

Typical applications in gynecology are:
  • Laparoscopic surgery
  • Placenta coagulation
  • Endometriosis

The energy is applied by Bare Fibers with frontal emission, or Harpoon Fibers with angled emission. These are used in combination with guiding handpieces or e.g. a laparoscope.

Typical applications in spinal surgery are:
  • Percutaneous Laser Discus Decompression (PLDD)
  • Spinal tumors

For discus decompression, a thin EndoRadial fiber is inserted to ensure a homogeneous shrinkage.

For applications like tumor surgery, the energy is applied by Bare Fibers with frontal energy emission, in combination with guiding handpieces.

Typical applications in urology are:
  • Tumor ablation in kidney, bladder and ureter
  • Enucleation of the prostate
  • Incisions (e.g. at bladder neck or strictures)
  • Condylomata

The energy is applied by Bare Fibers with frontal energy emission, or by special Harpoon Fibers with an angled emission. These are introduced by rigid or flexible endoscopes.

Typical applications in thoracic surgery and pneumology are:
  • Open metastasectomy (with Bare Fiber or focussing handpiece)
  • Laparoscopic metastasectomy
  • Bronchoscopic applications

The energy is applied by Bare Fibers with frontal energy emission. Alternatively, open surgery can be conducted with focussing handpieces.

Fibers and accessories

  • Bare Fibers with frontal emission

    Have a frontal spot of energy emission.

    Available in different diameters (e.g.. 300, 400 und 600 µm) which can be used for a broad range of applications.
  • Harpoon Fiber with angled amission

    Have an angled emission of the bundled energy.

    Useful for the tangential cutting and ablation of tissue, e.g. during tumor surgery.
  • EndoRadial Fiber with 360° emission

    Emit laser energy at a 360° ring-shape

    Available with different diameters. Ideal for the endovascular coagulation of tissue, e.g. with varicose veins, proctology or discus decompression (PLDD).
  • Focussing handpieces

    Allow very small spot sizes by focussing the laser energy.

    Useful for precise cutting or selective coagulation of blood vessels.
  • Zoom handpieces

    Allow a variable spot size to create different effects at tissue.

    Useful for the laser therapy of larger surfaces, e.g. for a better wound healing.
  • 1

Accessories to the laser unit

  • Guiding handpieces

    Comfortable guidance of the fiber and its tip. Available in different shapes and lengths, from own manufacturing.
  • Fiber repair kit

    For the professional repair of reusable fiber tips. Fully sterilizable set of fiber stripper, ceramic knife and silicone pad.
  • Smoke evacuator VACULAS

    Ensures a safe and hygienic working environment. Reliably removes smoke gases and potential virus particles during surgery.
  • Trolley

    Protects the laser unit during transport and storage. Offers enough room for all accessories.
  • Laser protection goggles

    Safety for users and patients. Fit well for spectacle wearers. Also available as easy to place variant for patients.
  • 1

Technical parameters

Diode laser, configurable with one or two wavelengths,
up to 50 W of output power (810 nm, 980 nm, 1064 nm, 1470 nm)

Operating modes

  • Continuous Wave (CW)
  • Pulsed Mode
  • LFD Mode (optional, for enhanced coagulation control)

Activation profiles

  • Continuous
  • Single pulse (1 ms - 5 s)
  • Pulse repetition (1 ms - 5 s)

User interface

  • True Color Touch Panel 9.7" with brilliant colors

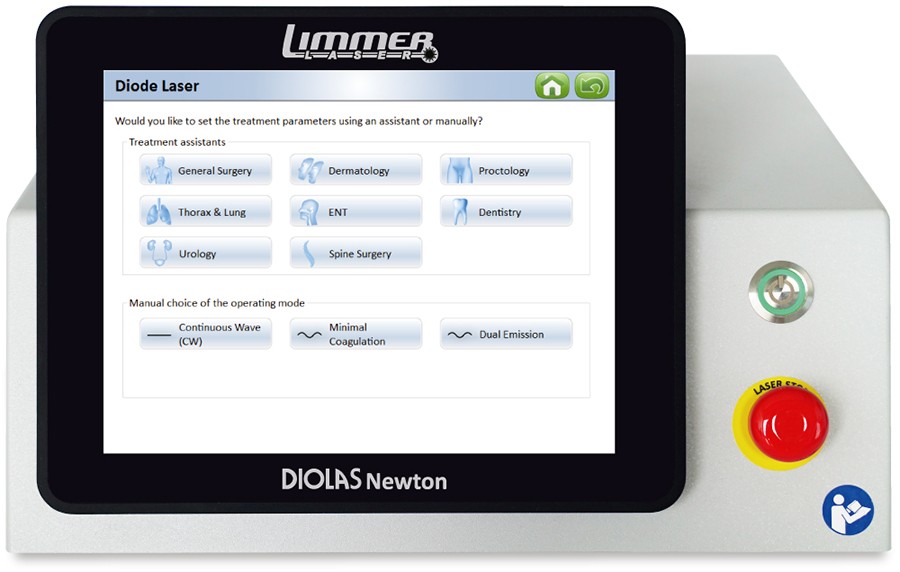

  • Interactive treatment assistant for guided choice of operating parameters
  • Audio output per energy pulse or continuous
  • USB port for export of treatment protocols
Beam delivery by flexible fibers and handpieces

Pilot beam red or green, < 5 mW, adjustable

Integrated ports

  • USB
  • Warning lamp system
  • Remote control of smoke evacuator VACULAS (optional)
  • Scanner (optional)
Storage for >100 user profiles and individual treatment parameters
Adaptive air cooling, internal

Electrical requirements

230 - 240 V (10 A) / 100 - 110 V (15 A), 50 / 60 Hz, single-phase

Dimensions and weight

34 x 30 x 22 cm (W x H x D), max. 8 kg

Technical changes reserved. Available applications and treatment assistants depend on device configuration.
