CO2 Laser UNILAS Touch

Our new 4th generation CO2 Laser combines all advantages of latest laser technology with the extensive experience of our engineers on how to build the ideal laser for clinics and hospitals. See yourself how good is the new CO2 Laser UNILAS Touch!

Main advantages

  • High output powers
    of up to 60 Watt Continuous Wave (CW) and 30 Watt extended SuperPulse
  • Innovative UltraSharp Laser Technology
    for the smallest beam diameters available & improved patient outcome
  • Newly developed scanner system SurgiScan X2
    for precise ablation and cutting of tissue as well as gentle fractional therapy - ideal for aesthetic and surgical treatments
  • New SolidBench Technology
    for a lasting and perfect alignment of pilot and working beam
  • Large True Color Touch Panel
    for easy and intuitive use of all functions
  • Integrated treatment assistant
    to assist in the choice of the right treatment parameters - benefit from the experience of surgeons of all medical disciplines
 product1


Show brochure

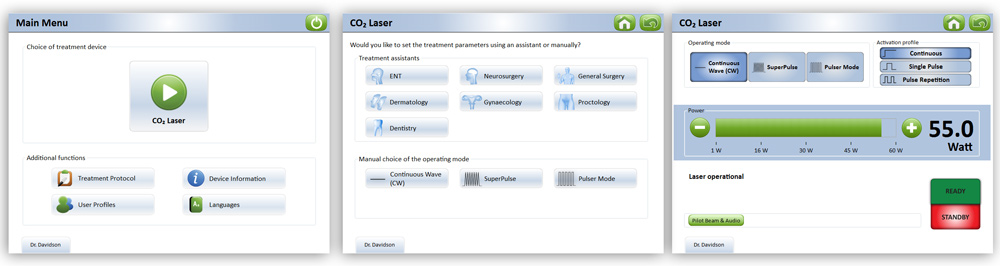

Exemplary views of the user interface

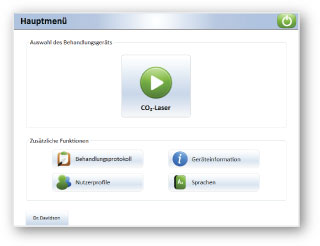

Hauptmenü

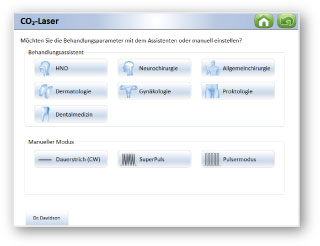

Assistentenmenü

Betriebsmenü

The instrument which adapts to your needs

  • Store your own user name and own set of treatment parameters
  • Easily choose treatment parameters on-screen from the list of indications of your own medical discipline
  • Interdisciplinary laser system, ideal for teaching and clinical research
  • Configure the laser system with accessories  - or have it integrate with most of your existing tools



Medical Applications


Please click on the individual disciplines to see the type of treatments this laser device can be used for.

Available Configurations

  • UNILAS Touch One (30 W)
    Cost-effective entry-level model
  • UNILAS Touch Pro (60 W)
    High-power advanced model

Main Accessories

Technical Specifications

Laser type

CO2 Laser with TEMoo Mode
λ 10.600 nm
Operating modes & power at tissue
  • Continuous Wave (CW)
  • Enhanced SuperPulse
  • Ultra-short Pulser Mode

Output power freely adjustable between 0,4 and 30 / 60 Watt, depending on device model and operating mode.
Activation profiles
  • Continuous
  • Single pulse (1 ms - 5 s)
  • Pulse repetition (1 ms - 5 s)
User interaction
  • True Color Touch Panel 10,4 Inches (26,4 cm) with brilliant colors
  • Interactive assistant program for the smart choice of operating parameters
  • Adjustable audio output per energy pulse or continuous
  • USB port for output of treatment protocols
Beam delivery Free-moving articulated arm with 7 joints for an extensive treatment range of 150 cm, 360° rotatable. Optional: Flexible laser fiber
Pilot beam

red, bright and precise, adjustable and ideal for modern microscopes and colposcopes
Integrated ports
  • USB port
  • Control of external smoke evacuator VACULAS
  • Warning lamp system
  • Ethernet port (optional)
  • Scanner system port (optional)
Memory for user programs Storage for >50.000 user profiles and individual operating parameters
Cooling Internal
Electrical requirements 230 - 240 V (6 A) / 100 - 110 V (10 A), 50 / 60 Hz, single-phase
Dimensions & weight 40 x 125 x 40 cm (W x H x D), 56 kg



Technical changes reserved.

Genuine quality "Made in Germany"





Upcoming events

  • 05-2020: Annual Meeting of the German Society of Oto-Rhino-Laryngology, Head and Neck Surgery (Berlin, Germany) (postponed to 2021)
  • 06-2020: Congress of the European Laryngological Society (ELS) (Stuttgart, Germany) (postponed to 2021)
  • 11-2020: MEDICA, hall 10, booth 10H20 (Düsseldorf, Germany) (postponed to 2021)
  • 06-2021: Arab Health, Sheikh Saeed Hall, World Trade Center (Dubai, UAE)

Moreover, we organize trainings and workshops from time to time. Contact us for further details.
