Diode Laser DIOLAS Photon

DIOLAS Photon is the new leader of high-quality compact lasers. With its unique abilities and specialized accessories, it becomes the perfect tool for medical doctors in many fields.

The instrument which adapts to your needs

  • Store your own user name and own set of treatment parameters
  • Easily choose treatment parameters on-screen from the list of indications of your own medical discipline
  • Configure the laser system with accessories such as handpiece holders, etc. according to your preferences

Main Features

  • World's first compact laser with LFD (Levelled Field Density) Mode which limits coagulation to a constant 1 mm for clearly reduced collateral damage
  • Large 10,4 " True Color Touch Panel for easy and intuitive use
  • Compact, lightweight and easy to carry
  • Multi-user system for infinite storage of individual user programs
  • Interactive assistant program for easy selection of treatment parameters

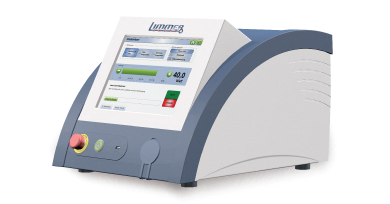

intro DIOLASPhoton

Brochure DIOLAS Photon
Show brochure

Treatment Pictures & Videos

Please click on the video's fullscreen button to enlarge.


 Medical Applications

Please click on the individual disciplines to see the type of treatments this laser device can be used for.



Available Configurations

DIOLAS Photon Pro
High-power advanced model

  • 30 Watt @ 980 nm, alternatively 810 nm
  • 50 Watt @ 980 nm, alternatively 810 nm
  • 30 Watt @ LFD Mode
  • 50 Watt @ LFD Mode



DIOLAS Photon Duo
Powerful dual-mode model

  • 30 Watt @ CW 980 nm + 25 Watt @ LFD Mode
  • 30 Watt @ CW 810 nm + 25 Watt @ LFD Mode

Main Accessories



Technical Specifications

Laser type Semiconductor-based Laser module at different available wavelengths *
Operating modes & power at tissue *
  • LFD Mode *
  • Continuous Wave
  • Pulsed Mode

Output power between 0,5 Watt and device maximum, depending on individual configuration

Activation profiles
  • Continuous
  • Single pulse (10 ms - 5 s)
  • Pulse repetition (10 ms - 5 s)
User interaction
  • True Color Touch Panel 10,4 Inches (26,4 cm) with brilliant colors
  • Interactive assistent program for the smart choice of operating parameters
  • Adjustable audio output per energy pulse or continuous
  • USB Port for output of treatment protocols
Beam delivery Various types of flexible fiber probes
Pilot beam

red (635 nm), < 3 mW, adjustable

Integrated ports
  • USB port
  • Control of external smoke evacuator VACULAS
  • Warning lamp system
  • Ethernet port (optional)
  • Scanner system port (optional)
Memory for user programs Storage for >50.000 user profiles and individual operating parameters
Cooling Internal
Electrical
requirements *
230 - 240 V (10 A) / 100 - 110 V (15 A), 50 / 60 Hz, single-phase
Dimensions & weight * 35 x 31 x 42 cm (W x H x D), max. 15 kg

* depending on device model & configuration

Technical changes reserved.
